Brand: Aadona

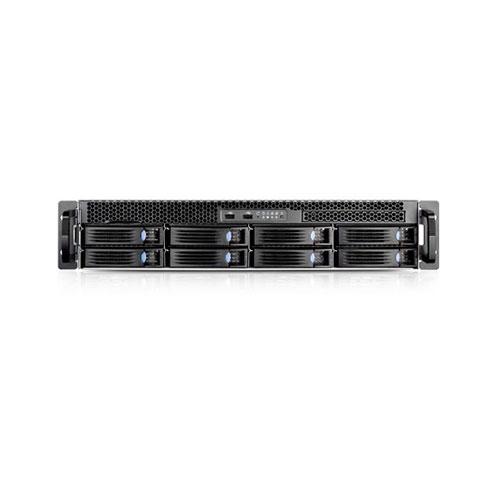

Product: HELIOS HMB 7008 Storage
CPU: Intel Core i5 (Quad core)
Hardware encryption engine: Yes
Installed memory: 8GB (Expandable up to 16GB)
Memory slots: 2
Drive bays: 8
3.5: Yes
2.5: Yes (addon bracket required)
SSD: Yes
HDD: Yes
Drives supported: SSD, SATA
Physical Interfaces:
USB: 4 USB 2.0 (rear), 4 USB 3.0 (2 rear, 2 via headers)
Expansion Port: 2
1G RJ45 LAN: 1 fixed + 4 optional ports
10G RJ45 LAN: x
PCIe slots: 1 PCI-E X16, 1 PCI-E GEN
Physical Specifications:
Size (DxWxH): 660mm x 430mm x 88mm
Weight: 11 kg
System fan: 3 (80 x 25/38mm) Hot-Swap
AC input power voltage: 100V to 240V AC
Power frequency: 50/60Hz, single phase
Redundant Power Supply: 550W RPS
Operating temperature: 5°C to 35°C (40°F to 95°F)
Storage temperature: -20°C to 60°C (-5°F to 140°F)
Relative humidity: 5% to 95% RH
Maximum operating altitude: 5,000 m (16,400 ft)
Software Specifications:
Sharing: AFP, NFS, WebDAV, SMB, CIFS, Block (iSCSI)
Reporting: Email alerts, CPU usage reporting (NAS health reports)
Send alerts to: AWS-SNS, E-mail, InfluxDB, Mattermost, OpsGenie, PagerDuty, Slack, SNMP Trap, VictorOps
Reports Available For: CPU, Disk, Memory, Network, Partition, System, Target, UPS, NFS, ZFS
Web UI: Built-in and custom themes
Add-on Features: Plugins for backup, media center, antivirus, and more
Data Management: Snapshots, Replication, Encryption, RAID
Management Protocols: IPMI, WebUI, REST API, SSH, Telnet, SNMP, NIS, LDAP, Kerberos, Active Directory
Security: Firewall, Encrypted shared folder, SMB encryption, HTTPS, and more
FTP Server: Bandwidth control, FTP over SSL/TLS, SFTP, Rsync over SSH, and more
Backup Tools: Windows Backup, Apple Time Machine, rsync, and more
Cloud Sync: Sync with Amazon Drive, Dropbox, Google Drive, and more
Automation:
Supports CRON jobs: Yes
Init and shutdown scripts: Yes
Rsync scheduled tasks: Yes
Rsync Module mode: Yes
Rsync over SSH: Yes
Scheduling S.M.A.R.T tests: Yes
Periodic snapshots: Yes
Snapshot auto-removal: Yes
Periodic replication: Yes
Scrub tasks: Yes
Cloud sync task: Yes
Setting Resilver priority: Yes
Background services: Yes
AFP configuration service: Yes
Dynamic DNS service: Yes
FTP access (incoming connections): Yes
Anonymous FTP: Yes
iSCSI service: Yes
LLDP service: Yes
NFS service: Yes
Rsync service: Yes
S3 configuration service: Yes
S.M.A.R.T monitoring service: Yes
SMB service: Yes
SNMP service: Yes
SSH (incoming connections): Yes
TFTP service: Yes
Network UPS service: Yes
WebDAV access service: Yes
File Sharing Capability:
Recommended local user accounts: 4096 (Can be increased without an additional license)
Recommended local groups: 512
Recommended shared folders: 512
Recommended concurrent SMB/NFS: Not specified
RAID Levels / Data Reduction / Storage Management:
RAID Levels: Stripe, Mirror, Z1, Z2, Z3, Log device, Cache device
Data Reduction: Thin Provisioning, Compression, Deduplication
Storage Management: Max. internal volumes: 512, Max. iSCSI targets: 32, Max. iSCSI LUNs: 256
Compatible OS and Browser:
UNIX: Yes
Linux: Yes
Windows 7 Desktop and above: Yes
Windows Server 2008 and above: Yes
FreeBSD: Yes
MacOS: Yes
Supported browser: Mozilla Firefox, Google Chrome, Microsoft Internet Explorer, Apple Safari
Surveillance Station:
Maximum IP cameras: Unlimited (hardware-dependent)
Virtual Machine Manager:
Run various virtual machines on NAS, including Windows, Linux, or Virtual DSM: Yes
High Availability Manager:
Support for snapshots: Yes
High Performance:
Intelligent read and write caches: Yes (HDD supported, recommended SSD)
