Brand: CP Plus

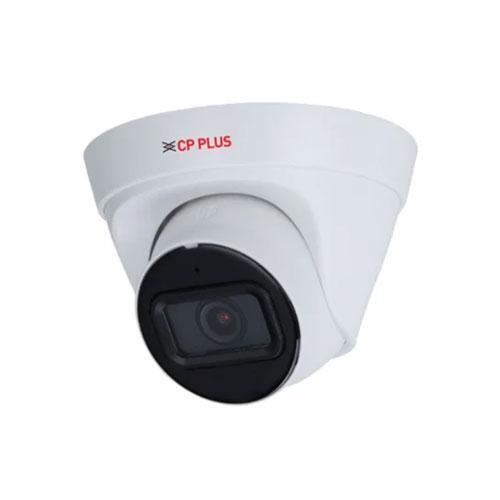

Product: CPUNCDA21L3CQ 2MP Network IR 30Mtr Dome Camera
Image Sensor: 1/2.8 2MP PS CMOS Image Sensor (0.9071 centimeters)
Effective Pixels: 1920 (H) × 1080 (V)
Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM: 128 MB
ROM: 128 MB
DORI Distance Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Lens 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify)
Gain Control (AGC): Auto/Manual
Lens Type: Fixed-focal
Max. Aperture: F2.0
Lens Mount: M12
Close Focus Distance: 3.6 mm: 0.9 m, 2.8 mm: 0.6 m
Lens: 3.6mm (2.8mm optional)
Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
IR Number: 1 IR LED
IR: IR Range of 30 Mtr.
Smart IR: Support
Day/Night: Auto(ICR)/Color/B/W
S/N Ratio: Greater56dB
Angle of view 3.6 mm: H: 86°, V: 47°, D: 103° 2.8 mm: H: 101°, V: 54°, D: 119°
Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
SDK and API: Support
Iris Control: Fixed
Ethernet: RJ-45 (10/100 Base-T)
Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception
Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Mirror Function: Support
IR Control: Auto, Manual
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Certificates: ISO9001, CE, FCC and RoHS, BIS
Power Source: 12 VDC/PoE (802.3af)
Power Consumption Basic: 1.3 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE)
User/Host: 6 (Total bandwidth: 36 M)
Weatherproof Standard: IP67
Browser: IE, Chrome, Firefox
Weight: 250g
