Home CP Plus Camera CP Plus CPURC DC24PL2C V3 2MP IR Dome Camera

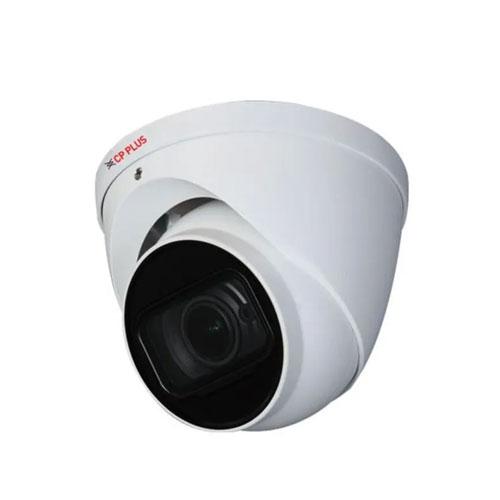

CP Plus CPURC DC24PL2C V3 2MP IR Dome Camera
Brand: CP Plus
Product: CP URC DC24PL2C V3 2MP IR Dome Camera
Image Sensor: 1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm)
Minimum Illumination: 0.04Lux/F2.0, 30IRE, 0Lux IR on
Shutter Speed: PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
Lens: 3.6mm (2.8mm optional)
S/N Ratio: More than 65dB
Lens Type: Fixed lens/ Fixed Iris
Mount Type: Board-in
Max Aperture: F2.0
Angle of View: 2.8mm; D:120° H:100° V:53° 3.6mm: D:99° H:83° V:44
Close Focus Distance: 3.6mm– 0.8m ; 2.8mm– 0.6m
DORI Distance: 2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4
Back Light Compensation: BLC/HLC/DWDR
White Balance: Auto/ Manual
Video Streaming: 2.4MP@25/30fps, 25/30/50/60fps@720P
Video Output: 1-channel BNC high definition video output/ CVBS video output (Can switch)
ICR: Auto (ICR)/Manual
Audio: Built-in Mic
IR: IR Range of 20 Mtr., Smart IR
IR Control: Auto/ Manual
OSD Menu: Multi-language
Casing: Plastic
Operating Temperature: 40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Storage Temperature: 40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Source: 12V DC ±30%
Power Consumption: Max 2.3W (12V DC, IR on)
Dimension: 85mm x 85mm x 69mm (3.35
Weight: 0.09Kg
