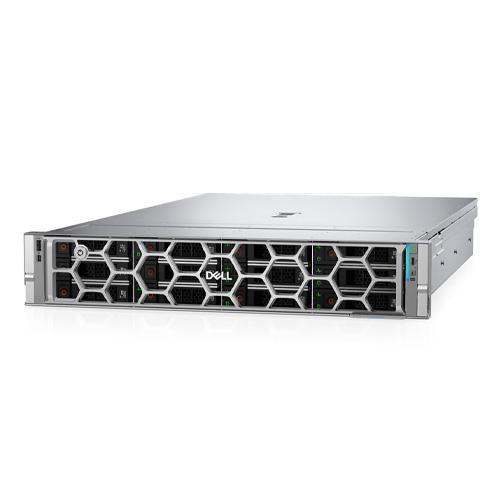

Home Dell Rack Server Dell New PowerEdge R570 Intel Processor 2U Rack Server
Dell New PowerEdge R570 Intel Processor 2U Rack Server
Brand: Dell
Form Factor: 2U Rack Server
Product: New PowerEdge R570 One Socket Rack Server
Processor: One Intel Xeon 6 E-core processor with up to 144 cores; One Intel Xeon 6 P-core processor with up to 86 cores with R1S option
Operating System: Canonical Ubuntu Server LTS: RedHat Enterprise Linux : SUSE Linux Enterprise Server: VMWare ESXi: Windows Server; Windows Server Datacenter
Accelerators: Up to 4 x 75W SW
Memory: DIMM Speed Up to 6400 MT/s RDIMM 16 DDR5 DIMM slot
Maximum RAM: Intel Xeon 6 E-core processor - supports RDIMM 1 TB max; Intel Xeon 6 P-core processor with up to 86 cores with R1S option - supports RDIMM 4TB max
Storage Front Bays: 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe; 8 x 2.5-inch NVMe (SSD) RAID; 8 x 2.5-inch NVMe (SSD); 8 x 2.5-inch SAS/SATA (HDD/SSD); 12 x 3.5-inch SAS (HDD) RAID; 16 x 2.5-inch SAS/SATA (HDD/SSD) RAID
Storage Rear Bay: 4 x EDSFF E3.S Gen5 NVMe
Storage Internal Controllers: PERC H365i DC-MHS Front; PERC H965i DC-MHS Front; PERC H365i Adapter; PERC H965i Adapter
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Power Supplies: 800 W Platinum / Titanium 100-240 VAC or 240 HVDC, hot swap redundant: 1100 W Platinum / Titanium 100-240 VAC or 240 HVDC, hot swap redundant: 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
Cooling fan: Air cooling Up to 5 hot plug fans
Front Ports: 1 x USB 2.0 Type-A (optional LCP KVM): 1 x USB 2.0 Type-C (HOST/BMC Direct): 1 x Mini Displayport (optional LCP KVM): 1 x DB9 Serial (with front I/O configuration): 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports: 1 x dedicated BMC Ethernet port: 2 x USB 3.1 Type-A: 1 x VGA
Internal Ports: 1 x USB 3.1 Type-A
Network options: OCP NIC card 3.0: Two slots on the front or two slots on the rear
PCIe Slots : Up to six PCIe slots (x16 connector)
Bezel: Security Bezel (optional)
Dimensions: Height 86.80 mm (3.42 in.) X Width 482 mm (18.98 in.) X Depth 802.38 mm (31.59 in.)
Weight: 31 kg (68.30 lb.)
Call For Best Price
