-Cost-effective Wi-Fi 6 hospitality access points provide up to 1.5 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices.
-The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
-The AP provides IoT-ready Bluetooth 5 and Zigbee support.
-Dynamic Segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across all networks, enhancing user and device security.
-Zero Touch Provisioning that provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
-You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support.
Brand: HP

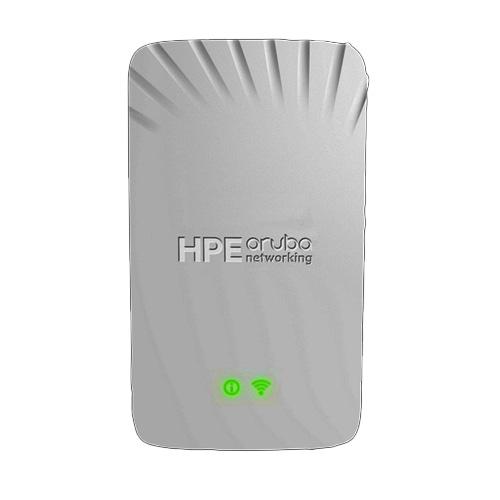

Product: HP Aruba Networking 500H Unified Hospitality Wifi Access Point
Certifications: Bluetooth SIG
Ethernet Alliance (PoE)
Wi-Fi Alliance:
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6 (ax)
WPA, WPA2 and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Agile Multiband
Passpoint (Release 2)
Wi-Fi CERTIFIED Location (HPE AP-505H Only)
Regulatory:
FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Wi-Fi antenna: AP-503H: Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 2.5 dBi in 2.4 GHz and 5.6 dBi in 5 GHz.
AP 505H: Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 5.2 dBi in 2.4 GHz and 5.4 dBi in 5 GHz.
Ports: USB 2.0 host interface (type A connector)
Serial console interface (proprietary, micro-B USB physical jack)
AP-503H:
E0: Ethernet wired network port (RJ-45);
E1-E2: Two Ethernet wired network ports (RJ45)
AP-505H:
E0: HPE Smart Rate RJ-45 port
E1-E4: Four Ethernet wired network ports (RJ45)
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: 50W max
Radio coverage: 5 GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2 Gbps wireless data rate (HE80)
2.4 GHz radio: Two spatial stream (SU/MU) MIMO for up to 287 Mbps wireless data rate (HE20)
Weight: 360 gm (0.8 lb)
Dimensions: 150 x 86 x 47 mm (5.9 x 3.4 x 1.9 in)
Warranty: Limited lifetime warranty. See the warranty duration.
