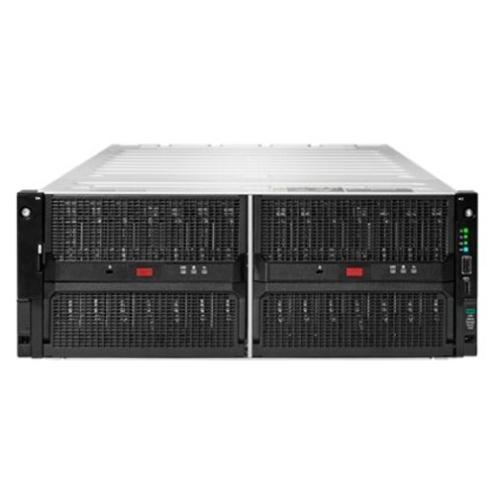

HPE Alletra 4140 4U Storage Server
- Brand: HPE
- Form factor:4U rack mount
- Front drive bays:68 LFF SAS/SATA drives of 92 LFF SAS/SATA drives
- Rear drive bays:Optional 8 E3.S 1Y Gen5 NVMe or 4 SFF Gen4 NVMe U.3 SSDs
- Dedicated boot device:Optional hardware mirrored dual M.2 NVMe SSDs or direct attached dual M.2 NVMe SSDs
- Storage controller:1 or 2 32-port with 8 GB cache (consume expansion slots) and optional Intel Virtual RAID on CPU (Intel VROC)
- Network controller:Up to 2 PCIe full-height half-length and 2 OCP 3.0 controllers, up to 100 Gb/s 2-port (consume expansion slots)
- Expansion slots:Up to 4 full-height half-length PCIe Gen5 slots and 2 OCP 3.0 slots with 2 processors installed
- Memory slots:24 DDR5 memory slots (12 per processor) for 1.5 TB maximum
- Processor family:Single or dual 4th generation Intel® Xeon® Scalable processors
- Power specifications:4 HPE Flexible Slot (Flex Slot) Power Supplies of up to 2200W per Power Supply
- System cooling:6 hot-pluggable system quad-fan modules with N+1 rotor redundancy
- Security:TPM 2.0, iDevID, Silicon Root of Trust, logical Configuration Lock, Secure Boot, Secure Start, optional controller-based Secure Encryption, optional Self-Encrypting Drives, optional Secure Erase, logical Configuration Lock, optional drive drawer security locks, optional HPE Server Security Optimized Service
- Infrastructure management:HPE iLO 6 Standard, HPE iLO 6 Advanced upgradable with license; HPE Compute Ops Management (subscription included) or optional HPE OneView (download required)
- Warranty:3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
- Successor to the industry leading HPE Apollo 4510 Gen10 System.
- More data storage capacity and density for improved economics via the up to 53% increase in drive bays in the 68 LFF standard or 92 LFF extended rack depth 4U chassis
- More data throughput with up to 2X the bandwidth from new tri-mode storage controllers coupled with new Dynamic Channel Multiplexing technology and eight PCIe Gen5 NVMe SSDs for cache and metadata.
- More data processing with 4th generation Intel® Xeon® Scalable processors delivering improved performance plus DDR5 memory with up to 50%1 more bandwidth.
- Enhanced zero trust security from silicon to software and factory to cloud with HPE Integrated Lights Out 6, including new support for the DMTF Security Protection Data Model.
- Cloud operating experience built on the HPE GreenLake Cloud Platform for simplified and automated lifecycle management including dramatically easier firmware management.
Call For Best Price
