-Cost-effective Wi-Fi 6 remote access points that provide up to 1.49 Gbps maximum combined data rate in a desktop form factor ideal for teleworker or small branch environments.
-Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
-Wired and wireless connections that include encryption and use authentication to protect the remote network.
-Optional USB LTE modem that supports high speed LTE Cat 12 connectivity for cellular backhaul.
Zero Touch Provisioning that provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
-Managed through cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and even temporary locations.
Brand: HP

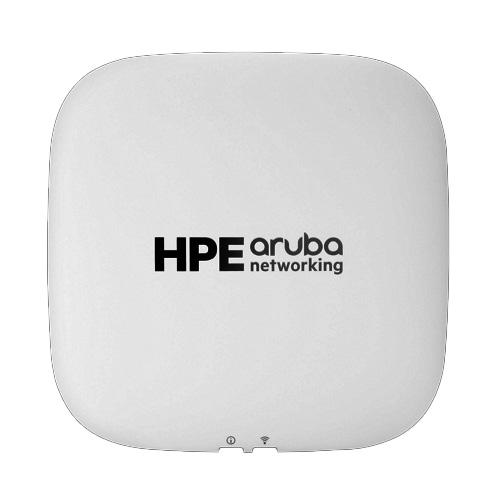

Product: HP Aruba Networking 500R Remote Access Point
Certifications: Wi-Fi Alliance (WFA)
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6
WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Agile Multiband
Input voltage: 12V/18W DC
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 60950
IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Wi-Fi antenna: AP-503R: Integrated omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.9dBi in 2.4GHz and 5.1dBi in 5GHz.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Ports:
E0: Ethernet wired network port (RJ-45);
E1-E2: Ethernet wired network ports (RJ-45)
USB-C: 5Vdc (nominal, +/- 5%); USB 2.0 host interface (Type A connector)
Serial console interface (proprietary, micro-B USB physical jack)
Kensington security slot.
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: Maximum (worst-case) power consumption: 15.4W
Maximum (worst-case) power consumption in idle mode: 4.0W
Radio coverage: AP type: Indoor, dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2x2 MIMO
2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)
5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices
Warranty: Limited lifetime warranty.
