-Wi-Fi 6 AP that provides up to 2.69 Gbps maximum combined data rate.
-Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
-IoT-ready with1 Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.
-Client and RF optimization to match clients with one of the best available AP and reduce coverage gaps.
-Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
-Offered in optional eco-friendly 10-packs.
Brand: HP

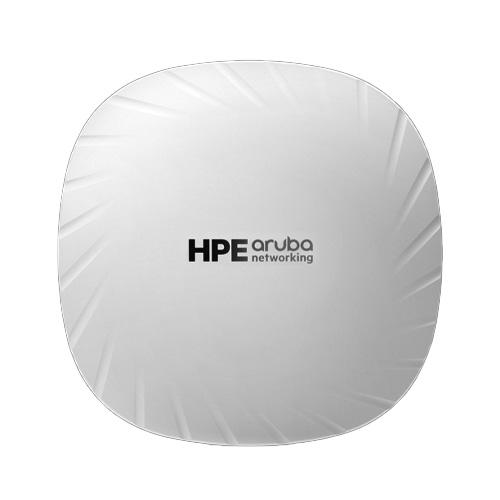

Product: HP Aruba Networking 510 Campus Wifi Access Point
Certifications:
UL2043 plenum rating
Bluetooth SIG
Wi-Fi Alliance:
Wi-Fi CERTIFIED a, b, g, n, ac, ax
WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, W-Fi Agile Multiband
Wi-Fi CERTIFIED Location
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs (AP-515 Only):
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Wi-Fi antenna: AP-514: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3 for 5 GHz; 2.4 GHz radio uses A0/A1 and chains 0/1 only).
AP-515: Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO (2x2 MIMO for 2.4 GHz) with peak antenna gain of 4.2 dBi in 2.4 GHz and 7.5 dBi in 5 GHz.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Ports:
E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps)
E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
USB 2.0 host interface (Type A connector)
Serial console interface (proprietary, micro-B USB physical jack)
Mounting: Pre-installed mounting bracket, for use with optional mounting kit, see the ordering guide.
Power consumption: Maximum (worst-case) power consumption:
DC powered: 16.0W
PoE powered (802.3af, IPM enabled): 13.5W
PoE powered (802.3at/bt): 20.8W
Maximum (worst-case) power consumption in idle mode: 12.6W (PoE) or 9.7W (DC)
Maximum (worst-case) power consumption in deep-sleep mode: 5.9W (PoE) or 1.5W (DC)
Radio coverage: AP type: Indoor, dual radio, 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO
Weight: 810 g (28.5 oz)
Dimensions: 46 x 200 x 200 mm (1.8 x 7.9 x 7.9 in)
Warranty: Limited lifetime warranty. See the warranty duration.
