-Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps maximum aggregate data rate and are ideal for outdoor and warehouse environments.
-Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40?C to +65?C).
-Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
-Small form factor for flexible deployment.
-Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
-Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
Brand: HP

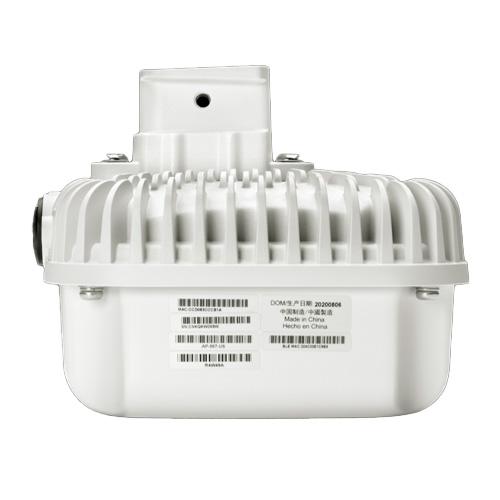

Product: HP Aruba Networking 560 Outdoor Wireless Access Point
Certifications: CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
Wi-Fi CERTIFIED ac (with wave 2 features)
Wi-Fi CERTIFIED Location
Regulatory:
FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs:
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Wi-Fi antenna:
AP-565 models: Built-in omni-directional antennas.
AP-567 models: Built-in 90°H x 90°V directional antennas.
5 GHz:
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4 GHz:
Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Bluetooth 5 and 802.15.4 radio
2.4 GHz–Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
Ports: E0: 10/100/1000BASE-T (RJ-45)
Mounting: For use with optional mounting kit, see the ordering guide.
Power consumption: Maximum (worst-case) power consumption: 15.6W
Maximum (worst case) power consumption in idle mode: 4.2W
Maximum (worst case) power consumption in deep-sleep mode: 1.7
Power sources sold separately
Radio coverage: AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
Weight: 1.09 kg, max, depending on model (2.4 lb, max, depending on model)
Dimensions: 11 x 16.5 x 16.5 cm (4.3 x 6.5 x 6.5 in)
Warranty: Limited lifetime warranty. See the warranty duration.
