-Outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate.
-Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40?C to +65?C).
-IoT-ready with a built-in Bluetooth 51 and 802.15.4 radio that supports Zigbee.
-Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
-Dynamic Segmentation and policy enforcement firewalls automatically enforces consistent policies across networks, keeping users and devices secure.
Brand: HP

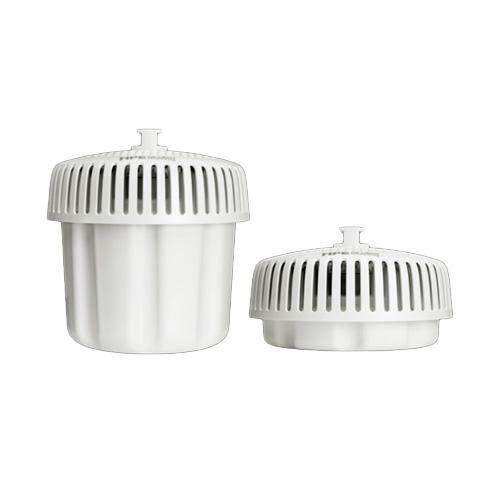

Product: HP Aruba Networking 570 Outdoor Wifi Access Point
Certifications: CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi CERTIFIED 6 (802.11ax)
Wi-Fi CERTIFIED ac (with Wave 2 features)
Passpoint (Release 2) with HPE Aruba Networking Operating System and Instant
Wi-Fi CERTIFIED Location
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs:
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Wi-Fi antenna: AP-574 models: Four Nf connectors for external antenna (5 GHz operation), and two Nf connectors for external antenna (2.4 GHz operation)
AP-575 models: Built-in omni-directional antennas: 5 GHz (5 dBi), 2.4 GHz (3.4 dBi)
AP-577 models: Built-in 90°H x 90°V directional antennas: 5 GHz (5.6 dBi), 2.4 GHz (6.8 dBi)
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: Maximum (worst-case) power consumption:
PoE powered (dual ports): 32.0W
PoE powered (single port, full function): 26.1W
Maximum (worst-case) power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE)
Maximum (worst-case) power consumption in deep-sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)
Radio coverage: AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz
Weight:
AP-574 models: 2.4 kg
AP-575 models: 2.4 kg
AP-577 models: 2.1 kg
AP-574 models: 5.3 lbs
AP-575 models: 5.3 lbs
AP-577 models: 4.6 lbs
Dimensions:
AP-574 models: 19 x 23 x 24 cm (H x W x D)
AP-575 models: 27 x 23 x 24 cm (H x W x D)
AP-577 models: 13 x 23 x 22 cm (H x W x D)
Not including mounting bracket
AP-574 models: 7.5 x 9.0 x 9.4 in (H x W x D)
AP-575 models: 10.6 x 9.0 x 9.4 in (H x W x D)
AP-577 models: 5.1 x 9.0 x 8.7 in (H x W x D)
Not including mounting bracket
Warranty: Limited lifetime warranty. See the warranty duration.
