-Outdoor Wi-Fi 6 access points provide maximum aggregate data rate of 2.97 Gbps.
-Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +65?C) with IP66/67 ratings.
-Flexible connectivity and power options with support for 5 Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power.
-1 Bluetooth and 802.15.4/Zigbee radios with high power to meet Industrial IoT requirements.
-Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Brand: HP

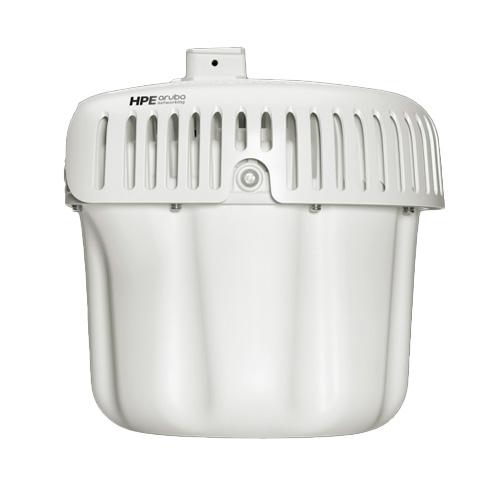

Product: HP Aruba Networking 580 Outdoor Access Point
Certifications: Wi-Fi Alliance
Bluetooth SIG
Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)
Input voltage: IEEE 802.3 at PoE, or direct AC power (via optional power supply)
AC power interface: 110-240V (requires AP-AC-MLX power connector kit)
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
IEC 60950-22
IEC/EN60601-1-2
EN 50155
Wi-Fi antenna: AP-584: Four Nf connectors for external dual band antennas (WIFI0 through WIFI3, corresponding with radio chains 0 through 3), and one Nf connector for BT (includes 5 dB 2.4 GHz omni-directional antenna).
AP-585: Four integrated dual-band omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.4 dB in 2.4 GHz and 5.8 dB in 5 GHz.
AP-587: Four integrated 90°H x 90°V dual-band directional antennas for 4x4 MIMO with peak antenna gain of 5.8 dB in 2.4 GHz and 6.6 dB in 5 GHz.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: The AP supports direct AC power and Power over Ethernet (802.3bt PoE; on port E0 only).
When both AC and PoE power sources are available, AC power takes priority over PoE.
Power sources are sold separately.
Radio coverage: Outdoor-hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
Maximum data rates of 4.8 Gbps in the 5 GHz band and 575 Mbps in the 2.4 GHz band
Weight: AP-584 models: 5.52 kg
AP-585 models: 5.24 kg
AP-587 models: 4.51 kg
AP-584 models: 12.17 lbs
AP-585 models: 11.55 lbs
AP-587 models: 9.94 lbs
Dimensions: AP-584 models: 24.4 x 32.4 x 31.2 cm (H x W x D)
AP-585 models: 32 x 32.4 x 31.3 cm (H x W x D)
AP-587 models: 17.4 x 30.2 x 30 cm (H x W x D)
Not including mounting bracket
AP-584 models: 9.6 x 12.6 x 12.3 in (H x W x D)
AP-585 models: 12.7 x 12.6 x 12.3 in (H x W x D)
AP-587 models: 6.9 x 11.9 x 11.8 in (H x W x D)
Not including mounting bracket
Warranty: Limited lifetime warranty. See the warranty duration.
