-High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
-Delivers up to 3.9 Gbps maximum aggregate data rates with a tri-radio 2x2:2 MIMO
-160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
-High-power Bluetooth1 and Zigbee radios to meet Industrial IoT requirements
-Flexible and fast-wired connectivity with 2.5 GbE port and 1 GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas
-Self-locating with embedded GPS receiver and will operates as Standard Power (SP) device
Brand: HP

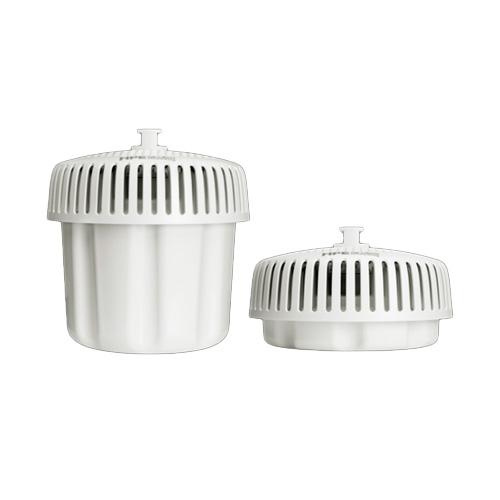

Product: HP Aruba Networking 670 Outdoor Wireless Access Point
Certifications:
Wi-Fi Alliance;
Bluetooth SIG;
Ethernet Alliance (E0, PoE PD Device Class 6)
Input voltage: IEEE 802.3bt PoE, or direct DC power (through optional power supply)
Regulatory:
FCC/ISED;
CE Marked;
RED Directive 2014/53/EU;
EMC Directive 2014/30/EU;
Low Voltage Directive 2014/35/EU;
IEC/EN 62368-1;
EN 60601-1-1, EN60601-1-2;
For more country-specific regulatory information and approvals, contact your HPE Aruba Networking representative.
Wi-Fi antenna:
AP-674: External antenna model (6 connectors total)
Two (Nf) connectors for 2.4 GHz + 5 GHz dual-band external antennas
Two (Nf) connectors for 6GHz external antennas
One (Nf) connector for BLE/IoT radio (includes a 5d Bi omni-directional external antenna)
One (Nf) connector for the included (TNCf) GPS antenna (includes mounting bracket and cable)
AP-675: Internal antenna model
Built-in Omnidirectional Antennas
2.4 GHz Antennas 3.8 dBi
5 GHz Antennas 5.7 dBi
6 GHz Antennas 5.9 dBi
BLE/Zigbee: Integrated omnidirectional antenna with peak gain of 4.5 dBi
AP-677: Internal antenna model
Built-in Directional Antennas
2.4 GHz Antennas 6.9 dBi
5 GHz Antennas 6.5 dBi
6 GHz Antennas 6.9 dBi
BLE/Zigbee: Integrated omnidirectional antenna with peak gain of 4.5 dBi
AP-679: Internal antenna model
Built-in Directional Antennas
2.4 GHz Antennas 6.1 dBi
5 GHz Antennas
Wide 7.1 dBi
Narrow 10.1 dBi
6 GHz Antennas
Wide 7.7 dBi
Narrow 11.2 dBi
BLE/Zigbee: Integrated omnidirectional antenna with peak gain of 6.6 dBi
Connectivity, standard: Wi-Fi 6E (IEEE 802.11ax)
Ports: (1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX
(1) SFP Fiber port
Mounting: A mounting bracket has been preinstalled on the back of the access point. This bracket is used to secure the access point to any of the mount kits (sold separately). See the ordering guide.
Power consumption: Up to 45.5W maximum
Radio coverage:
AP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO;
2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with 2SS HE40 802.11ax client devices;
5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices;
6 GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices;
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 8 for the 6GHz radio)
Warranty: Limited lifetime warranty.
