Brand: Lenovo

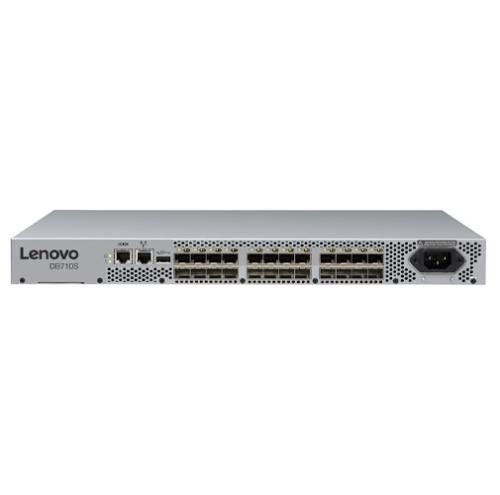

Product: ThinkSystem DB710S G6 Brocade FC SAN Switch
Machine type:7DHN (Lifetime warranty)
System Architecture:
Fibre Channel Ports:
Switch mode (default): 24 ports 64G SFP+ ports, each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports.
8-port base configuration: additional ports are enabled with two 8-port SFP+ PODs (Ports on Demand), scaling the switch from 8 ports to 24 ports.
Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports.
Scalability:Full-fabric architecture with a maximum of 239 switches
Performance:
Fibre Channel:
8.5GB/s line speed, full duplex
14.025Gb/s line speed, full duplex
28.05Gb/s line speed, full duplex
57.8Gb/s line speed, full duplex
Auto-sensing of 8, 16, 32, and 64G port speeds
Port types:
F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports
Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Media types:
64G FC SFP+ LC connector: SWL, LWL. Auto negotiates to 64, 32, 16G
32G FC SFP+ LC connector: SWL, LWL, ELWL. Auto negotiates to 32, 16, 8G
All Brocade transceivers are PC/UPC compatible
Management:Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); HTTP/HTTPS; RESTful API; SNMP v1/v3 (FE MIB, FC Management MIB); SSH
Operating Environment:Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 85% (non-condensing)
Power Supply:Base switch includes a single, fixed power supply with four integrated system cooling fans
Dimensions:Width: 42.88 cm (16.88 in.) X Height: 4.29 cm (1.69 in.)X Depth: 30.66 cm (12.07 in.)
Service and support:Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.
