Brand: Lenovo

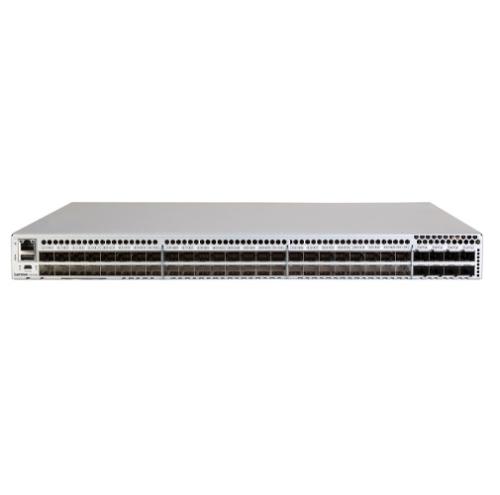

Product: ThinkSystem DB720S G7 Fibre Channal SAN Switch

Machine type:7D5J

System Architecture:

Fibre Channel Ports:

Switch mode (default): Minimum of 24 ports and maximum of 64 ports. Ports are enabled in increments of 8 ports up to 64 ports via Ports on Demand (PoD) licenses; E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports.

Up to 48 autosensing ports that support 32Gb or 64Gb SFP+ transceivers

Up to 8 double density (DD) ports that support either SFP+ (32Gb or 64Gb) transceivers for a single connection, or SFP-DD transceivers that each support two 64G connections, thus providing an additional 16 ports at 64Gb.

Access Gateway default port mapping: 56x SFP+ F_Ports, 8x SFP+ N_Ports.

The SFP+ ports are capable of auto-negotiating to 8, 16, 32, or 64Gb speeds depending on the SFP+ model and the minimum supported speed of the optical transceiver at the other end of the link.

Scalability:Full-fabric architecture with a maximum of 239 switches

Certified maximum:4K active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics

Performance:

Non-blocking architecture with wire-speed forwarding of traffic:

8GFC: 8.5 Gb/sec line speed, full duplex

10GFC: 10.53Gb/s line speed, full duplex; 10Gb/s optionally programmable to fixed port speed.

16GFC: 14.025 Gb/sec line speed, full duplex

32GFC: 28.05 Gb/sec line speed, full duplex

64GFC: 57.8 Gb/sec line speed, full duplex

Traffic load balancing:

Frame-based ISL Trunking load balances supports up to eight SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk when using 64Gb/s optics

Dynamic Path Selection (DPS) provides exchange-based load balancing across all available ISLs.

Aggregate bandwidth:4.096 Tb/s

Maximum fabric latency: Latency for locally switched ports is 460 ns (including FEC).

Maximum frame size:2112-byte payload

Frame buffers: 24K per switching ASIC

Classes of service:Class 2, Class 3, Class F (inter-switch frames)

Port types:

D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, M_Port

Optional port-type control

Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port

Data traffic types:Fabric switches supporting unicast

Media types:

64Gb/s: Brocade Secure hot-pluggable SFP-DD, SN connector; 64Gb/s SWL

64Gb/s: Brocade Secure hot-pluggable SFP+, LC connector; 64Gb/s SWL, LWL 10 km, ELWL 25 km

32Gb/s: Brocade Secure hot-pluggable SFP+, LC connector; 32Gb/s SWL, LWL 10 km, ELWL 25 km

10Gb/s: Brocade Secure hot-pluggable SFP+, LC connector; 10Gb/s SWL, LWL 10 km

Fibre Channel distance is subject to fiber-optic cable and port speed.

USB port:One standard USB port for firmware download, support save, and configuration upload or download.

Fabric services:BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; FICON CUP; Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Name Server; Slow Drain Device Quarantine (SDDQ); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch, Logical Fabric); VMID+ and AppServer.

Access Gateway mode: Some fabric services do not apply or are unavailable in Access Gateway mode

Extension:Fibre Channel, in-flight compression (Brocade LZO) and encryption (ES-GCM-256 encryption on FC ISLs, E_Port); integrated optional 10Gb/s Fibre Channel for DWDM MAN connectivity

Power supplies:Dual, hot-swappable redundant power supplies (80 PLUS Gold) with integrated system cooling fans (3 built into each power supply), N+N cooling redundancy

Management:

Management:Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); HTTP/HTTPS; RESTful API; SNMP v1/v3 (FE MIB, FC Management MIB); SSH.

Security:DH-CHAP (between switches and end devices); FCAP switch authentication; HTTPS; IP filtering; LDAP with IPv6; OpenLDAP; Port Binding; RADIUS; TACACS+; user-defined Role-Based Access Control (RBAC); Secure Boot, Secure Copy (SCP); Secure Syslog; Secure FTP (SFTP); Secure Shell (SSH) v2; Secure Socket Layer (SSL); Switch Binding; Trusted Switch

Management access:10/100/1000Mb/s Ethernet (RJ-45) port, serial console port (mini-USB)

Diagnostics:Active Support Connectivity (ASC) and Brocade Support Link (BSL); built-in flow generator; ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI); flow mirroring; Forward Error Correction (FEC); frame viewer; IO Insight for SCSI and NVMe monitoring; Monitoring and Alerting Policy Suite (MAPS); nondisruptive daemon restart; optics health monitoring; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute); power monitoring; RAStrace logging; Rolling Reboot Detection (RRD); Syslog/Audit Log; VM Insight

Mechanical Enclosure:

Front-to-back airflow; non-port-side exhaust; power from back, 1U

Back-to-front airflow; non-port-side intake; power from back, 1U

Dimensions:Width: 440 mm (17.3 in.) X Height: 44 mm (1.7 in.)X Depth: 356 mm (14.0 in.)

Weight: 7.17 kg (15.8 lb) with two power supply FRUs, without transceivers

Support:

Warranty:3 year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Three-year software/firmware entitlement.

Service and support:Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.
