Brand: PeopleLink

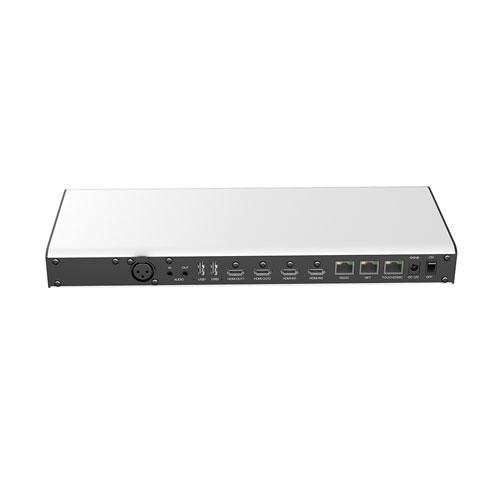

Product: PeopleLink 4K Impact Codec EndPoint 54 Watts Video Conferencing
Multimedia Framework Protocols: ITU-T, H.323, IETF, SIP
Video Codec Protocols: H.261, H.263, H.263+, H.263++, H.264, H.264 High Profile, H.265
Audio Codec Protocols: G.711, G.722, G.722.1*, G.722.1C*, AAC-LD, G.726, SILK
Dual Stream Protocols: ITU-T H.239, BFCP
Other Communication Protocols: H.221, H.224, H.225, H.235, H.241, H.245, H.281, H.350, H.460, T.140, DTMF
Network Transport Protocols: TCP/IP, DHCP, SSH, HTTP, HTTPS (with SSL/TLS), RTP, RTCP, RFC3261, RFC3264, RFC2190, RFC3407, RFC2833, RFC4585 (RTP/AVPF), SNTP, ARP
4K @ 30fps – Minimum Bandwidth: 2048 Kbps
1080p @30.60– Minimum Bandwidth: 512 Kbps
720p – Minimum Bandwidth: 384 Kbps
Dual Stream Capability: Supports Dual 4K @ 30fps
Display Modes: Supports PIP and POP (equal display)
IP Bandwidth Range: 64 Kbps to 8 Mbps
Video Output Interfaces: 2 × HDMI
USB Interfaces: 2 × USB 3.0 (USB flash drive, USB microphone, etc.)
Terminal Dimensions: 348 × 148 × 37 mm
Packaging Dimensions: 413 × 332 × 130 mm
Net Weight: 1.4 kg
Gross Weight: 2.2 kg
Power Supply: DC 12V
Maximum Power Consumption: 54W
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 80% (non-condensing)
Storage Humidity: 0% to 95% (non-condensing)
