Brand: Posiflex

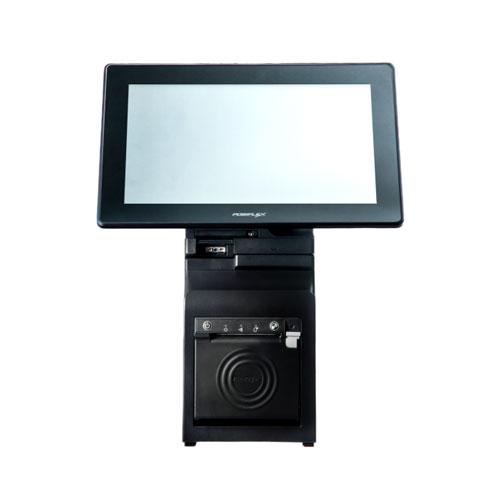

Model No: Posiflex HS 6714W Pos Terminal
Processor: Intel Whisky Lake Core i3-8145UE, up to 3.90 GHz, 4.0M Cache; Intel Whisky Lake Core i5-8365UE, up to 4.10 GHz, 6.0M Cache
System Memory: DDR4 SO-DIMM x 2, max. 64GB
Storage Device: M.2 connector x 2 (support SATA signal only)
TPM: TPM 2.0
Power Supply: 24V/100W
OS Support: Windows 10 IoT LTSC, Windows 11 IoT LTSC
LCD: 14" TFT LCD
Resolution: 1366 x 768
Touch: True-flat PCAP touch with multi-touch support (IP65 on front panel)
Serial Port: DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port: Yes
Standard USB Port: USB 3.0 x 4
OTG USB: N/A
LAN Port: 10/100/1000 Mb x 1
Display Port: VGA x 1 (12V support for Posiflex monitors )
CR Port: RJ11 x 1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer
PS2 Port: Yes
Audio: Line-out / Mic-in combo jack x 1
Expansion Slot: M.2 slot x 1
Operating Condition: 0°C - 40°C, 20%RH - 90%RH
Storage Condition: -20°C - 70°C, 10%RH - 90%RH
WiFi module: M.2 WiFi/BT module
Printer Module: PP-7900, 3" speedy thermal printer, 250 mm/sec (max.)
MSR Module: 3 tracks ISO or JISII (HID/VCOM selection)
Scanner Module: 2D barcode scanner
RFID Reader Module: Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
iButton Module: Yes (cannot coexist with Fingerprint Sensor)
4G/LTE Communication Module: Single SIM slot, selected band support
Fingerprint Sensor Module: Optical type
POS Monitor: Non-touch TFT LCD: 7"/9.7"/12.1"; PCAP touch TFT LCD: 9.7"
Line Display: 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display
Dimension (W x D x H in mm): 371 x 210 x 476
Weight (N. W. in kg): 5.8
