Brand: Promise

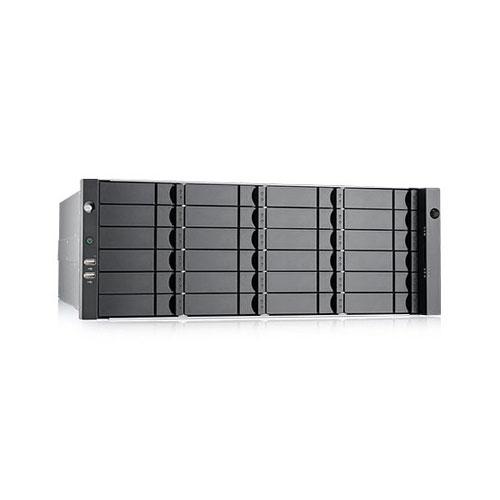

Product: A6800P 4U 19 Rackmount Surveillance Stroage
Form Factor: 4U, 19 Rackmount
Camera Range: 200
Number Of Drives: 24 Drives
Drive Type: 12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”², Hot Swappable
Controller: Single
System Processor: Intel Xeon i7 series
System Memory: 8GB x 2 Default (Max 64GB)
I/O: 2x Gigabit Ethernet
Internal Storage(M.2): 128GB (SSD M.2)
Storage Expansion: Optional Promise SAS and iSCSI Storage
USB Ports: USB2.0 x 2 (Front) / USB3.2 x 4(Back)
PCI Express Ports: 1x8-lane gen3
Graphic Interface: D-sub x 1, DVI x 1, HDMI™ x 1
RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
Hot spares: Multiple global or dedicated hot-spare drives with revertible option
Supported OS (64-bit): Windows 10, WS 2019
Management Tools/Interface: Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Appliance Mode: Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification: Email, SNMP(V1/V2/V3), Buzzer, LEDs
AC Input: 100 ~ 240V AC, 60 ~ 50Hz
Current (Maximum): 8-4A
Power Supply: Redundant 550W for each power, Hot swappable N+1 Design (80 PLUS certified)
System Controller: Replaceable FRU design
Temperature: 5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions: 131 x 482 x 545 mm / 5.16 x 18.98 x 21.46
Power Supply: Hot Swappable 80 PLUS Platinum 550W Redundant Power Supply
Temperature: 5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions: 131 x 482 x 545 mm / 5.16 x 18.98 x 21.46
WeightW/o HDD: 20.50kg (45.20 lbs); W/ HDD: 32.50kg ( 71.50 lbs)
Warranty: 3-years standard warranty
