Brand: Qnap

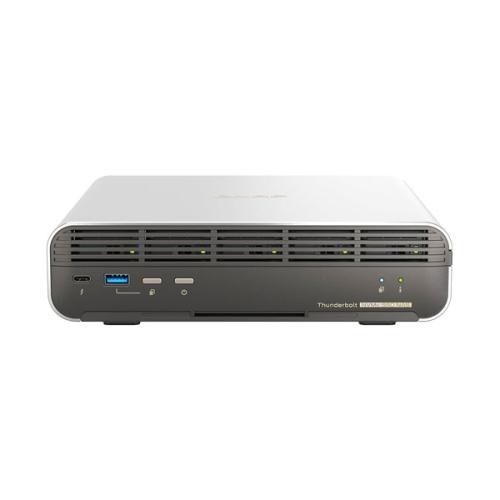

Model No: Qnap TBS-h574TX-i5-16G Thunderbolt 4 NASbook
CPU: Intel Core i5-1340PE 12C(4P+8E)/16T up to 4.50GHz
CPU Architecture: 64-bit x86
Graphic Processors: Intel® Iris® Xe Graphics eligible
Floating Point Unit: Yes
Encryption Engine: Yes
Hardware-accelerated Transcoding: Yes
System Memory: 16 GB on board (non-expandable)
Maximum Memory: 16 GB on board (non-expandable)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 5 x E1.S up to 15mm (5x PCIe Gen3 x2), Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility: E1.S or M.2 2280 PCIe NVMe
Hot-swappable: Yes
M.2 Slot: 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)
SSD Cache Acceleration Support: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1
10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL): Yes
Jumbo Frame: Yes
Thunderbolt Port: 2 (Thunderbolt 4)
USB 2.0 port: 1
USB 3.2 Gen 2 (10Gbps) Port: 2
HDMI Output: 1, HDMI 1.4b
Form Factor: Set-top design
LED Indicators: Status, USB copy, SSD 1-5
Buttons: Status, USB copy, Reset
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 120W Adapter (19VDC output, 100-240VAC input)
Power Consumption: Operating Mode, Typical: 46 W
Fan: System fan: 2 x 40mm, CPU fan: 1 x 75mm
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
Dimensions (HxWxD): 60 × 215 × 199 mm
Weight (Net): 2.24 kg
Warranty: 3 Years Onsite Warranty
