Brand: Cudy

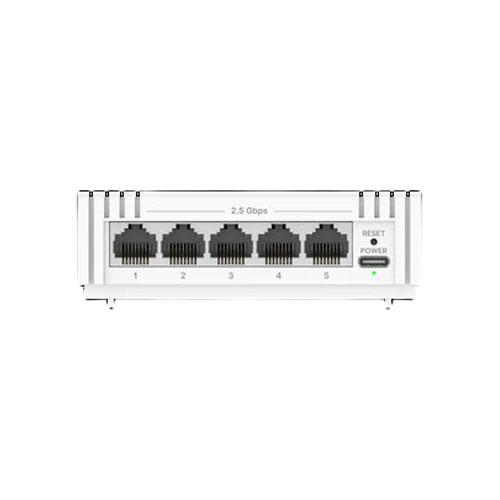

Model No: Cudy HS105U Unmanaged Switch
2.5G RJ45 Ports: 5
Shielded RJ45 Port: True
Extend Mode Ports: Configurable
VLAN Mode Ports: Configurable
LED: Power, Link/ACT of Each Ethernet Port
Power Interfaces: USB-C Port
Physical Buttons: Reset Button
Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at 2.5 Gbps, Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table: 4096
Max Switching Capacity: 25 Gbps
Max Forwarding Rate: 18.6 Mpps
Jumbo Frame: 9 KB
Packet Buffer: 4 Mbit
Basic Power Saving: True
Power Methods: DC
Power Input: 4.8-18V?
Max Power Consumption: 6W
Idle Power Consumption: 1.6W
802.3 Protocols: 802.3x Flow Control, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3bz 2.5GBASE-T
802.1 Protocols: 802.1p: LAN Layer 2 QoS/CoS, 802.1q: VLAN Bridge Operation
Port Mirror Sessions: 1
Port Trunk Groups: 2
Max Port Num per Port Trunk Group: 4
L2 Features: Loop Prevention, 802.1Q VLAN, DSCP QoS, 802.1p QoS, Port-Based QoS
Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
Control Methods: Config Web Page
Firmware Upgrade: Local Upgrade
Reliability: Backup and Restore
Diagnostic Tools: Ping
Casing Material: Plastic
Installation: Desktop, Wall-mount
Dimension: 100×92×32.5 mm, 3.94×3.62×1.28 inches
