Brand: Graphtec

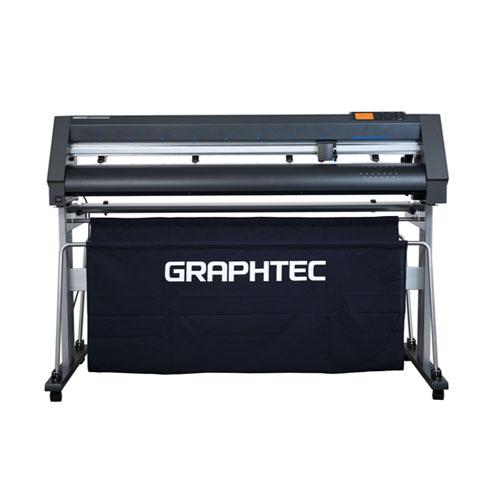

Model No: Graphtec CE7000 130 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1270?? × 50?
Cutting area of guaranteed accuracy (*1): 1250?? × 2m, (1250?? × 5?)
Mountable media width: Min-50mm, Max-1372mm(54inch)
Mountable roll media mass: 17 kg
Number of push rollers: 4 rollers(Max. 5 (option))
Max. cutting speed at all direction: 1000mm/s at 45° direction
Acceleration: 13.9m/s2 at 45° direction
Cutting force: Max. 4.41N (450gf)
Minimum character size: Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Programmable resolution: GP-GL?0.1/0.05/0.025/0.01???HP-GL™ (*2)?0.025??
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable number of tools: 1 tool
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Up to 0.25mm thickness, Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source: 100V to 240V AC, 50 / 60 Hz
Power consumption: Up to 100W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions: 1704×811×1215 mm (1704×1148×1215 mm)(*3)
