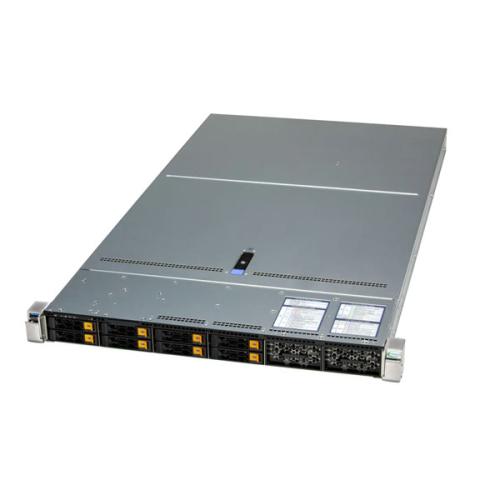

Supermicro Hyper SYS 122HA TN LCC Dual Socket Rack Server
Brand: Supermicro
Model No: Hyper SYS 122H TN Rack SuperServer
Form Factor: 1U Rackmount Enclosure: 438.4 x 43.6 x 743.38mm (17.3" x 1.71" x 29.27") Package: 604.8 x 203 x 950mm (23.81" x 7.99" x 37.4")
Processor: Dual Socket E2 (LGA-4710) Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MBCache per CPU
GPU: Up to 1 double-width or 3 single-width GPUs
System Memory: Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Expansion Slots: 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
On-Board Devices: NVMe: NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required) Chipset: System on Chip Network Connectivity: Via AIOM
Input / Output: LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear) 1 USB 3.0 port(front) Video: 1 VGA port
System Cooling: Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) Air Shroud: 2 Air Shrouds Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Power Supply: 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Color: Silver
Net Weight: 41 lbs (18.6 kg)
Call For Best Price
