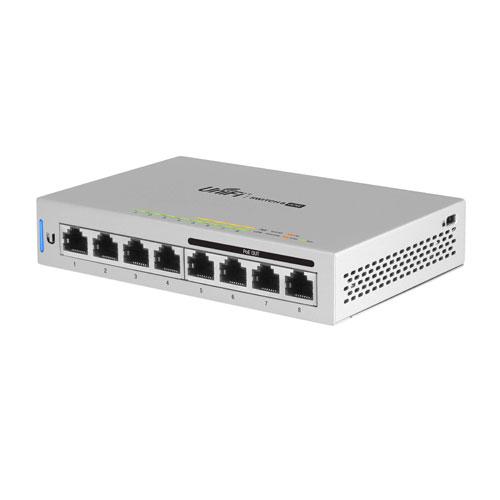

Ubiquiti US 8 60W Gigabit PoE Managed Switch
Brand: Ubiquiti
Model No: US-8-60W
Total Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
Max. Power Consumption: 12W (Excluding PoE Output)
Max. Passive PoE Wattage per Port PoE Mode 1: 12W @ 802.3at
PoE Mode 2: 12W @ 48V
DC Input Mode: 12W @ 48V
Passive: PoE Voltage Range Depends on Power Source
Power Method: (1) DC 48V, Max. 1.25A; (1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)
Supported Voltage Range DC: 48V; 48V Mode: 56V to 40V
Power Supply External AC/DC Adapter : 100-240VAC, 50/60 Hz; 48VDC, 0.5A
LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
Sound Level: 0.7 dBr (Fanless)
Networking Interfaces: 8 10/100/1000 Mbps RJ45 Ports
PoE In Interface (Port 1) PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
PoE Mode 2: 48V (Pins +4, 5; -7, 8)
PoE Out Interface (Port 8) PoE Mode 1: 48V (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 48V (Pins +4, 5; -7, 8)
DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6)
Management Interface Ethernet In-Band Management
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Enclosure Characteristics: SGCC Steel
Dimensions: 148.0 x 99.5 x 30.7 mm
Weight: 432 g (15.24 oz)
